FH Series, FilterPAK, Side Stream FilterPak

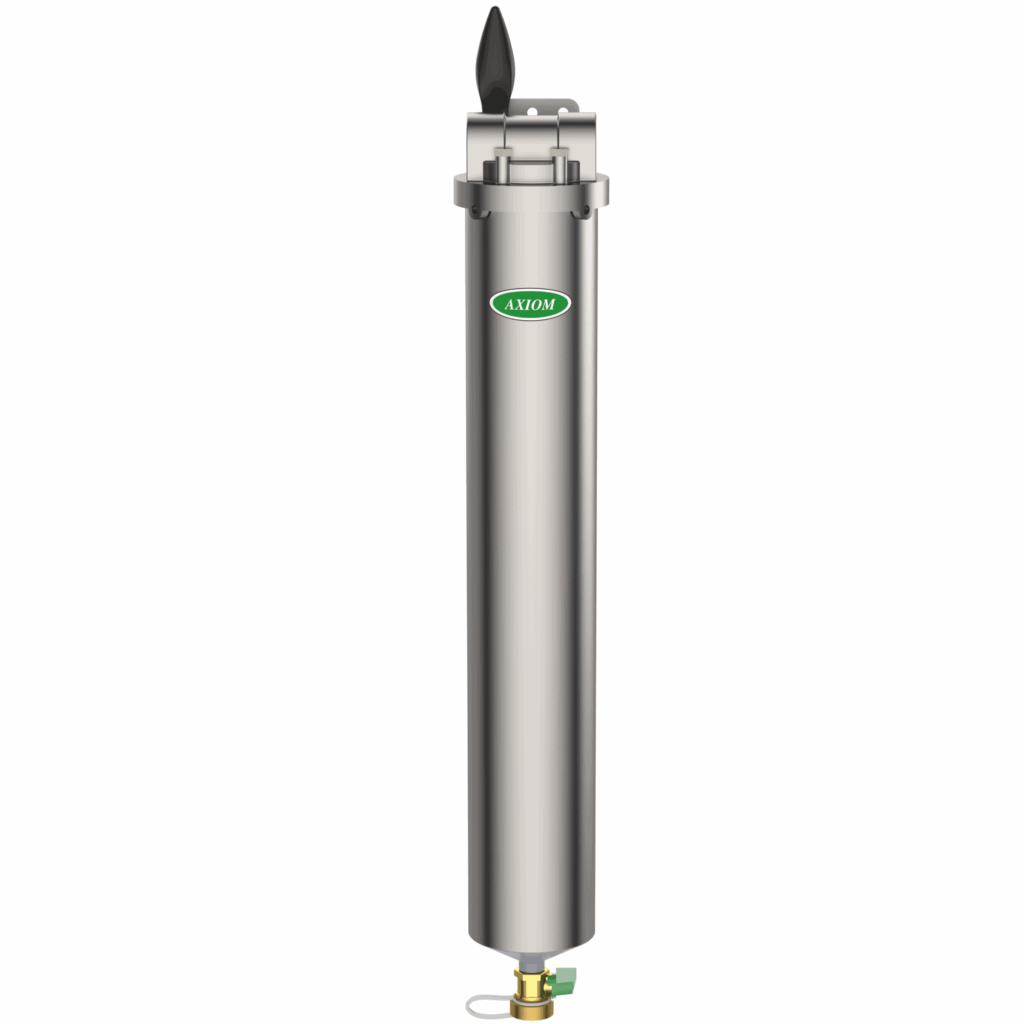

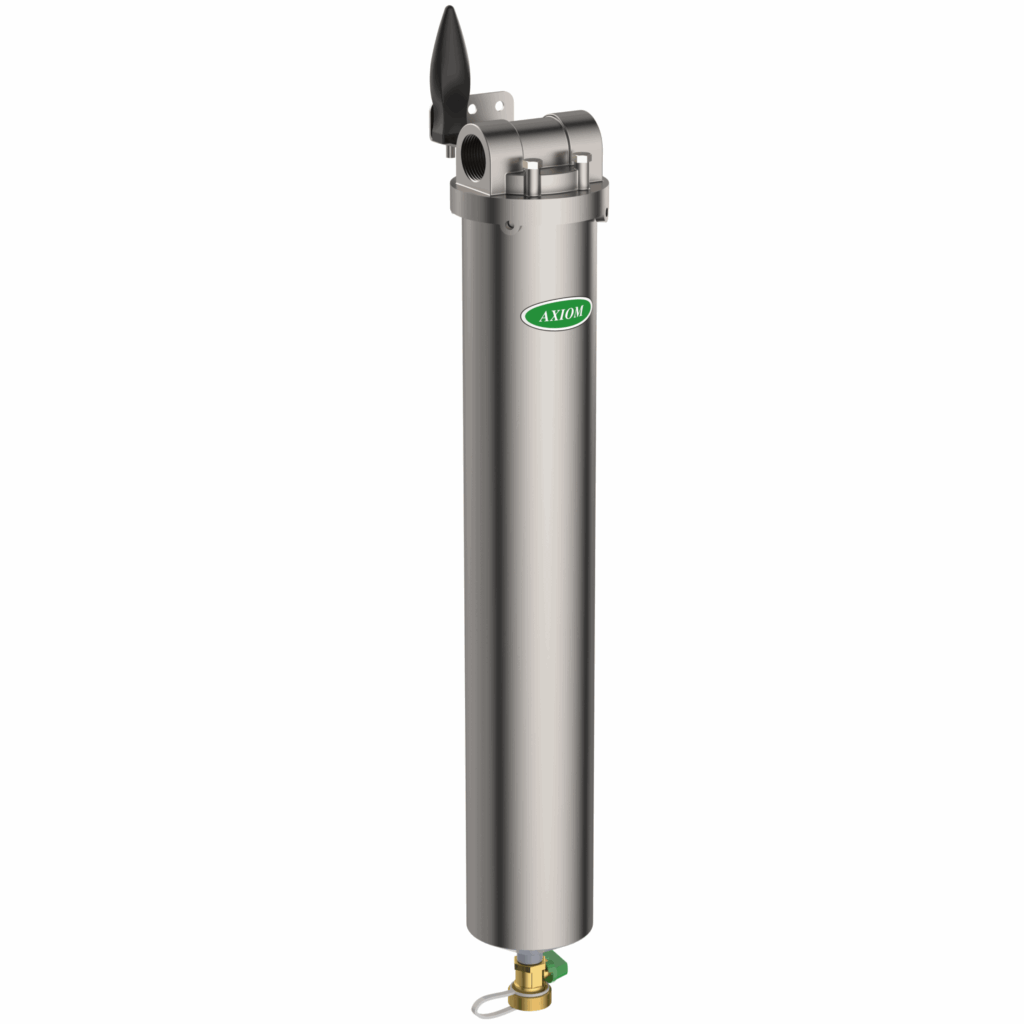

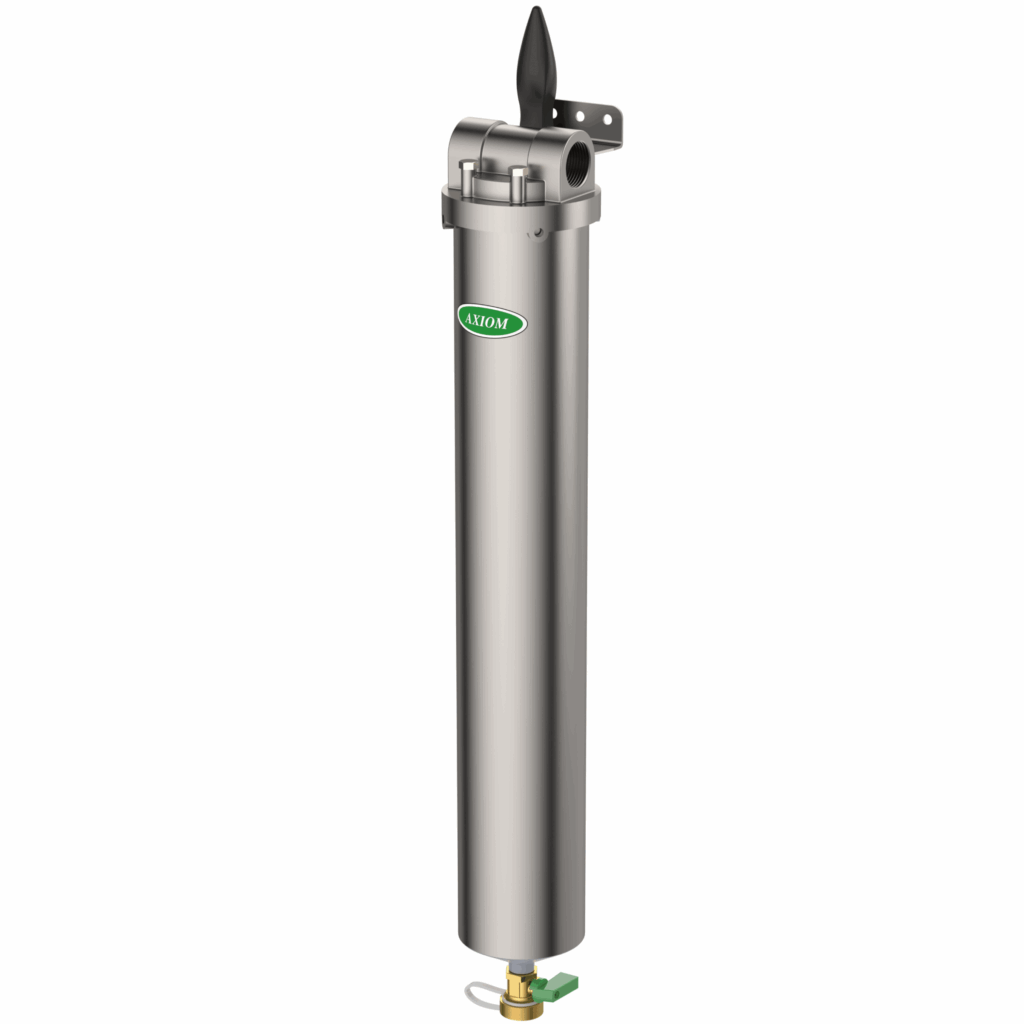

FH 20 : Filter Housing

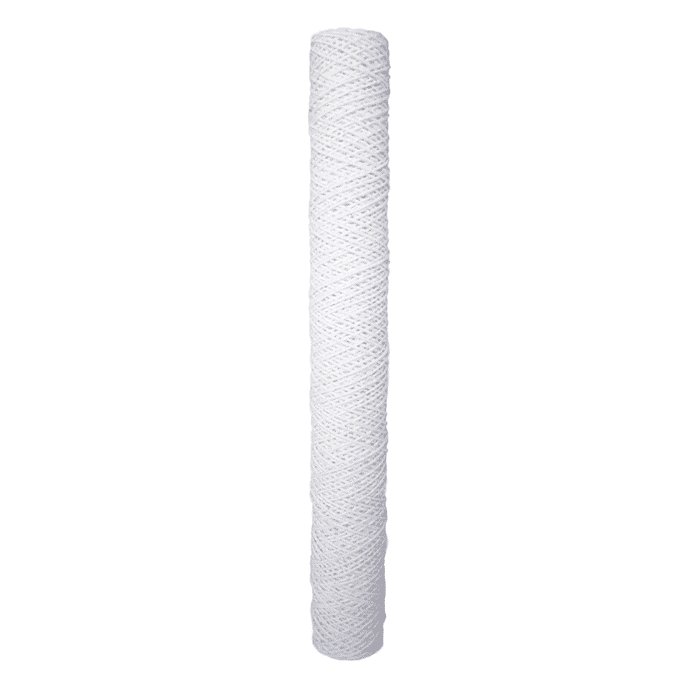

25 micron filter, removes debris from system
10 & 5 micron filters sold separately

Find a Rep Explore Resources

Overview

Axiom’s Hydronic Filter Housing delivers effective ongoing protection against the damaging effects of debris in all types of heating and cooling systems. Maintaining a clean hydronic system fluid has never been easier.

Max. Temperature: 200 ̊F (93 ̊C)
Max. Pressure: 300psi (2068 kPa)
Connections: FNPT 1”
Compatible fluids: Water, Propylene glycol, Ethylene glycol, Methanol (50%), Ethanol (50%)

Features & Benefits

Double O-ring on filter housing for reliable leak free cartridge replacements
Ball valve drain with hose connection and cap ensures safe fluid handling
Filter vessel can be used for chemical dosing. Up to 0.8 Gallon (3.0 litre)
Stainless Steel construction
Reduces equipment maintenance cost and extends system life

Specifications

Specification	Value
Tank Capacity (USG)	0.8
Tank Capacity (Liters)	3
Pressure Range Min (PSI)	300
Pressure Range Max (PSI)	300
Max Working Pressure (PSI)	300
Connection Size	1"
Stainless Steel	True
