The DSF100-D contains everything required to feed and pressurize closed hydronic heating or cooling systems in a neat, simple package that is easy to install and operate. It is compatible with both water and water/glycol solutions.

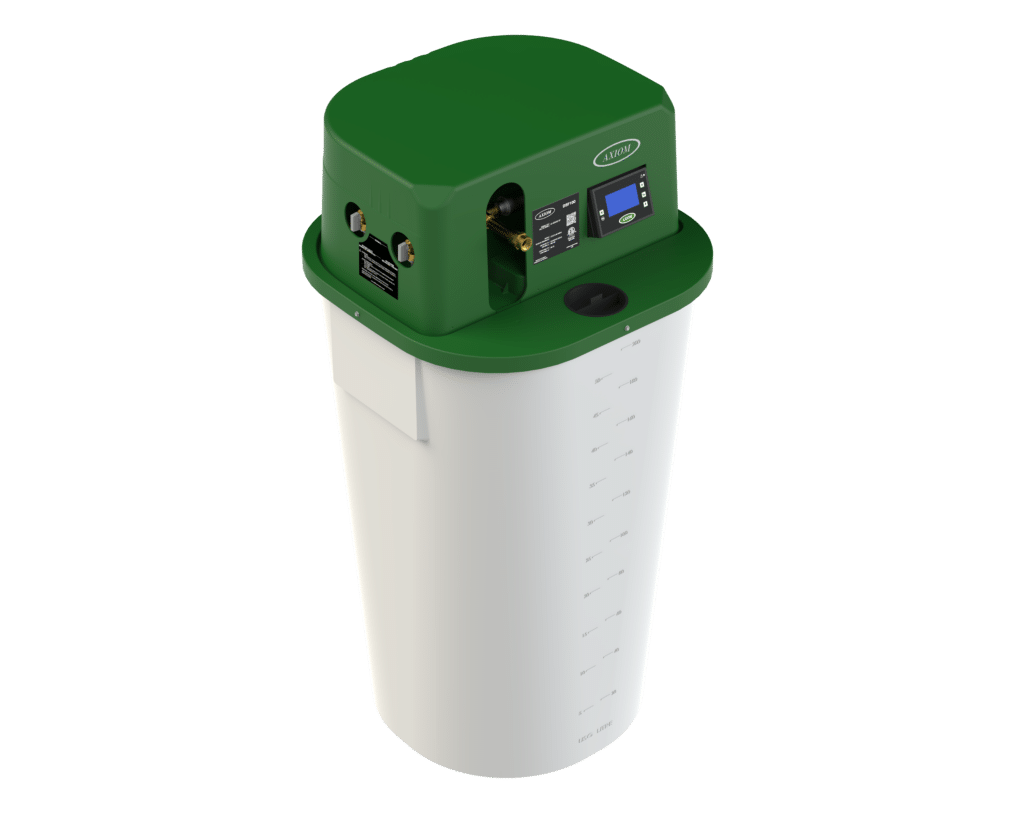

DSF100-D
Digital System Feeder
- Digital Pressure Controller with user-friendly display
- Contains Lead Pump and Lag Pump to ensure maximum uptime for important applications
- 0 – 90 psig pressure setpoint with adjustable deadband
- 227 Liter (60 US Gallons) tank for storage and mixing
- Audible and visual LED alarm, built into controller
Overview
Features & Benefits
- User-Friendly Digital Control
- At-a-glance pressure setpoint display
- Contains Lead Pump and Lag Pump to ensure maximum uptime for important applications
- Adjustable pressure setpoint between 0-90psi with Programmable Cut-in/cut-Out
- Control includes alarm contact, buzzer, and LED warning
- Alarm contact can be integrated into BMS control
- 60 USG translucent with molded-in fluid level gauge
- 4″ easy-fill access located at the front of the tank
- Includes a priming/agitation valve and drain valve
- Drained fluid can be easily pumped back into the system
- Limited make-up fluid reduces flood damage
- Provides a disconnect between building domestic water and closed-loop fluid
Specifications
| Specification | Value |
|---|---|
| Tank Capacity (USG) | 60 |
| Tank Capacity (Liters) | 227 |
| Connection Size | 1/2" |
| Duplex (Dual Pump) | True |
Download Resources
Protect 1 (Inhibitor)
Hydronic System Protection
PuroPal-1W
65 USG @ 200 ppm, ¾" Garden Hose Thread
DSF100-D-L
Digital System Feeder (120 USG, 0-90 psi)
DSF100-D-UHP
Digital System Feeder (60 USG, 0-150 psi)
-
DSF100-D-UHP-L
Digital System Feeder (120 USG, 0-150 psi)
-
DSF100
Digital System Feeder (60 USG, 0-90 psi)
-
DSF100-L
Digital System Feeder (120 USG, 0-90 psi)
SF100-D-P
System Feeder - 60 USG, 10-55 psi
(Duplex unit c/w Alternating control panel and level alarms)
Feeder Sizer
Use the calculator below to determine which System Feeder will best suit your application.
